ACO Multiline
All purpose system ACO Multiline® V 100 – 500

ACO Multiline

The technical advantage is the V-profile. ACO Multiline® sets new standards with its channel cross-section. The range is also based on a new idea: a universal channel body can be used for every nominal width and type of edge-rail for load classes A 15 to E 600.

Technical superiority

The heart of the innovation is the V-profile. This new channel profile improves the drainage capacity and enhances the self-cleansing effect. The new side wall structure and the intelligent distribution of materials considerably increases the load-bearing strength and the overall stability.

This results in simpler installation even though the system has an extremely high load-bearing capacity. The ACO Multiline® universal system is available with all gradient types which can also be freely combined with one another.

ACO Drain Visualizer

Click the button to see how the different grating options will appear in different paving options.

Watertight

The complete tightness of the channel body right up to the top of the edge rails, and the very smooth surface, increase drainage volumes during extreme storms. The ACO safety rebate ensures that the channel body units are connected to one another with a 100 % watertight seal. The new cast-in lip labyrinth seal ensures that the drainage system can be connected with a watertight seal to the drainage pipe system. ACO Multiline® easily complies with DIN EN 1433 specifications with a very large safety margin.

Creative and versatile Grate options

The ACO Multiline® V 100 – 500 system solutions have a clearly defined programme of gratings suitable for most architectural requirements in terms of aesthetics, functionality and load bearing strength.

The Drainlock gratings of the ACO DRAIN® Multiline system offer a wide range of covers in many shapes, colours and materials – made of cast iron or stainless steel, hot-dip galvanised steel or plastic – provide creative scope for individual planning and design.

The different gratings can be freely combined independent of the channel bodies and are available for all load classes from A 15 to E 600.

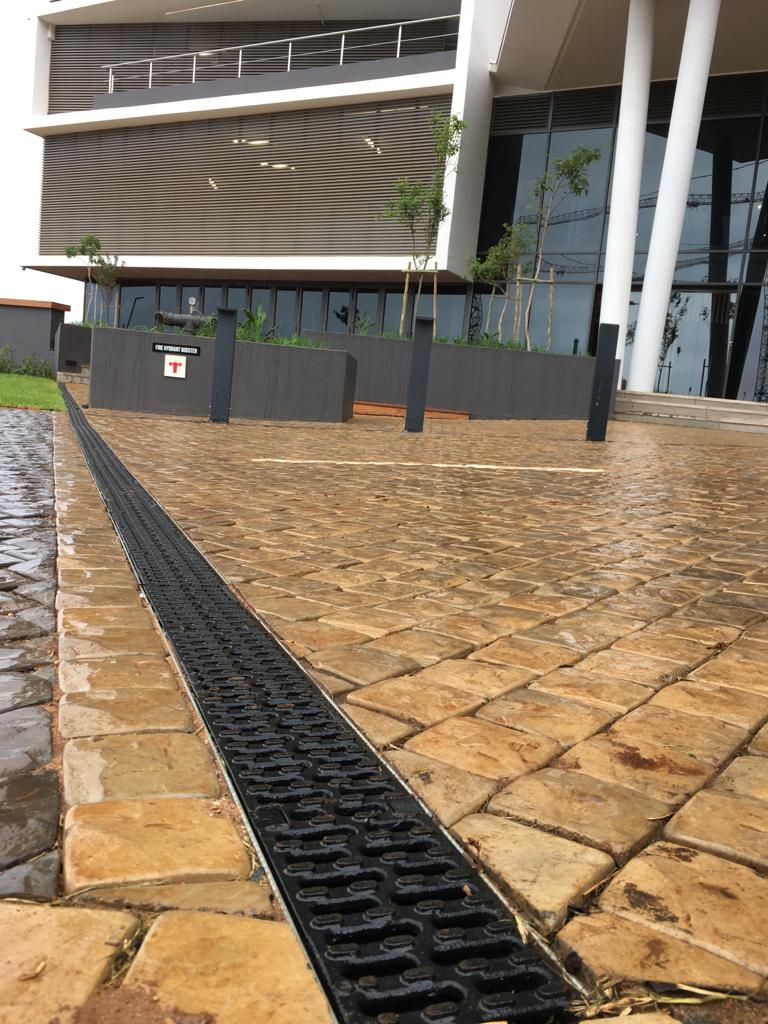

Typical applications

  • Car parks
  • Railway platforms
  • Architectural surfaces
  • Pedestrian zones
  • Landscaping
  • Industrial surfaces

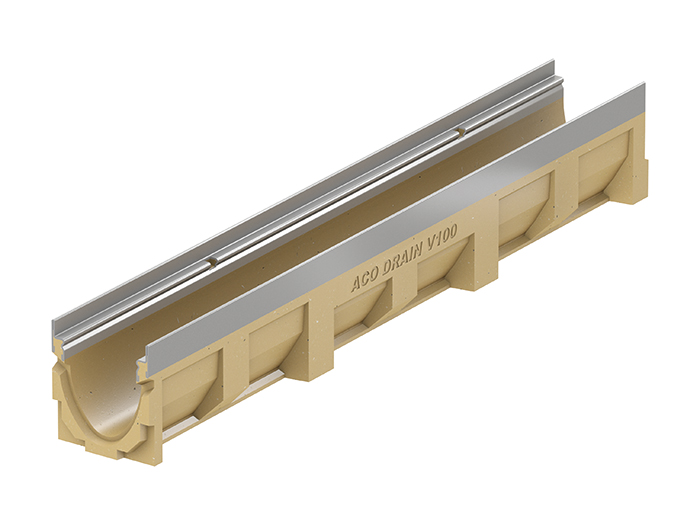

The channel system ACO Multiline®

  • Normal widths: 100, 150, 200, 300, 400 and 500
  • Cast-iron, stainless steel and galvanised steel edge-rails
  • For load classes A 15, B 125, C 250, D 400, E 600, EN 1433
