ACO Heavy Duty Channels
ACO S Channels

ACO S channel systems S 100 to S 300 are ACO's heavy duty solution – suitable for all load classes from A 15 to F 900 to EN 1433.

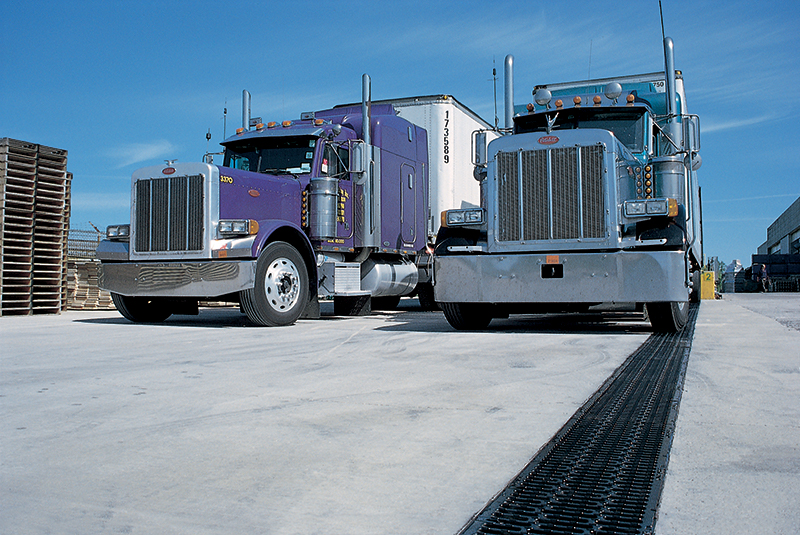

ACO S-channels heavy duty

Stability under the highest loads

The high strength of this heavy duty channel system is based on many details:

  • Reinforcing ribs increase side wall strength and optimise load distribution
  • Special anchoring feet provide perfect stability in the concrete surround
  • Integrated anti-shunt lugs to prevent longitudinal grating movement, and low centre of gravity provides safety, even during installation
  • An abutting edge rail for paviors of 10 cm height avoids unnecessary seams
  • Smooth lateral walls are free of any protrusions, permitting easy abutment of surface coverings such as paviors, asphalt or concrete Powerlock® boltless locking with stainless steel locking springs, replaces bolts for easier assembly and maintenance

Award winning design

This product was awarded a German product design (recognition) award for its excellent combination of form and function. A great design with many beneficial features:

  • High load resistance
  • High inflow profile
  • Longitudinal bars preventing water by-pass
  • Powerlock® boltless locking
  • Anti-shunt lugs to prevent longitudinal grate movement
  • High quality coating to prevent corrosion
  • Grate installation independent of channel direction

Specification
ACO S channel systems S 100 to S 300

  • widths: 16, 21, 26 and 36 cm
  • height: 10 to 26,5 cm;
  • 22 / 27 / 32 cm;
  • 29 / 34 / 39 cm;
  • 40 cm
  • For load classes A 15 to F 900 to EN 1433

Typical applications

  • Line drainage on motorways
  • Storage and filling yards
  • Industrial surfaces
  • Airports
  • Container transhipment surfaces
  • Petrol stations
