ACO S Channels

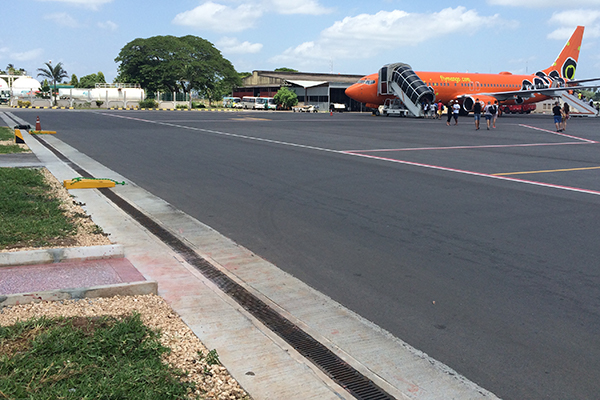

ACO S channel systems S 100 to S 300 are ACO's heavy duty solution – suitable for all load classes from A 15 to F 900 to EN 1433.
Stability under the highest loads
The high strength of this heavy duty channel system is based on many details:
- Reinforcing ribs increase side wall strength and optimise load distribution
- Special anchoring feet provide perfect stability in the concrete surround
- Integrated anti-shunt lugs to prevent longitudinal grating movement, and low centre of gravity provides safety, even during installation
- An abutting edge rail for paviors of 10 cm high avoids unnecessary seams
- Smooth lateral walls are free of any protrusions, permitting easy abutment of surface coverings such as paviors, asphalt or concrete Powerlock®boltless locking with stainless steel locking springs, replaces bolts for easier assembly and maintenance
Award winning design
This product was awarded a German product design (recognition) award for its excellent combination of form and function. A great design with many beneficial features:
- High load resistance
- High inflow profile
- Longitudinal bars preventing water by-pass
- Powerlock® boltless locking
- Anti-shunt lugs to prevent longitudinal grate movement
- High quality coating to prevent corrosion
- Grate installation independent of channel direction
Specification
ACO S channel systems S 100 to S 300
- widths: 16, 21, 26 and 36 cm
- height: 10 to 26,5 cm;
- 22 / 27 / 32 cm;
- 29 / 34 / 39 cm;
- 40 cm
- For load classes A 15 to F 900 to EN 1433
